jquery橡皮擦工具图像擦除效果代码

版权：原创更新时间：1年以上

[该文章底部包含文件资源,可根据自己情况,决定是否下载资源使用,时间>金钱,如有需要,立即查看资源]

以下是 jquery橡皮擦工具图像擦除效果代码的示例演示效果:

当前平台(PC电脑)

平台:

整屏预览

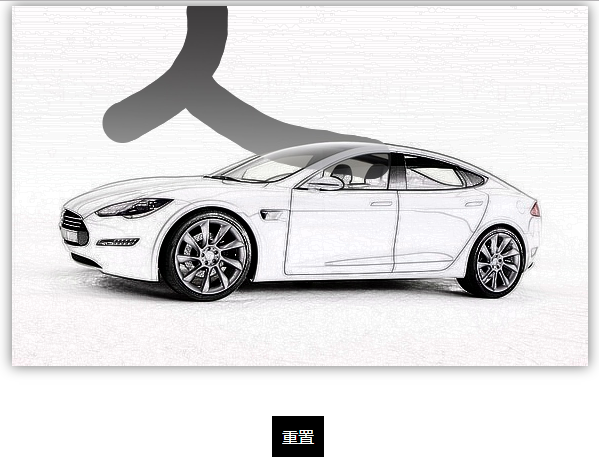

部分效果截图:

HTML代码(index.html):

<!DOCTYPE html>
<html lang="zh">
<head>
<meta charset="gb2312" />
<title>jquery橡皮擦工具图像擦除效果代码</title>
<style type="text/css">
* {
  -webkit-touch-callout: none;
  -webkit-text-size-adjust: none;
  -webkit-tap-highlight-color: rgba(0,0,0,0);
  -webkit-user-select: none;
}
body {
	background: #FFF;
	color: #000;
	margin: 5px;
	padding: 0px;
	margin-bottom: 45px;
	text-align: center;
	font-family: Helvetica, Arial;
}
a {
	color: #000;
}
a.box {
	text-decoration: none;
	display: inline-block;
	color: #FFF;
	background: #000;
	padding: 10px;
	margin: 10px 10px 10px 50px;
}
.big {
	font-size: 2em;
	display: inline-block;
	margin: 10px;
}
.container {
	position: relative;
	display: inline-block;
	width: 533px;
	height: 380px;
}
#robot {
	position: absolute;
	top: 0px;
	left: 0px;
	z-index: 1;
	-webkit-box-shadow: 0px 0px 20px 0px #707070;
	-moz-box-shadow: 0px 0px 20px 0px #707070;
	box-shadow: 0px 0px 20px 0px #707070;
}
#redux {
	position: absolute;
	top: 0px;
	left: 0px;
	z-index: 2;
}
</style>
<script type='text/javascript' src="js/jquery.min.js"></script>
<script type='text/javascript' src='js/jquery.eraser.js'></script>
<script type = "text/javascript">
addEventListener( "load", init, false );
function init( event ) {
	$("#redux").eraser();
}
function reset(event) {
	$("#redux").eraser('reset');
	event.preventDefault();
}
function grow(event) {
	$("#redux").eraser("size",150);		/* 橡皮擦大小 */
	event.preventDefault();
}
</script>
</head>

<body>
<span class="container">
	<img id="robot" src="images/Tesla.jpg" />
	<img id="redux" src="images/Tesla2.jpg" />
</span>
<p>
	<a href="#" onClick="reset(event);" class="box">重置</a>
</p>
<div style="text-align:center;margin:50px 0; font:normal 14px/24px 'MicroSoft YaHei';"></div>
</body>
</html>

JS代码(jquery.eraser.js):

(function( $ ){
	var methods ={
	init:function( options ){
	return this.each(function(){
	var $this = $(this),data = $this.data('eraser');
	if ( !data ){
	var width = $this.width(),height = $this.height(),pos = $this.offset(),$canvas = $("<canvas/>"),canvas = $canvas.get(0),size = ( options && options.size )?options.size:40,completeRatio = ( options && options.completeRatio )?options.completeRatio:.7,completeFunction = ( options && options.completeFunction )?options.completeFunction:null,parts = [],colParts = Math.floor( width / size ),numParts = colParts * Math.floor( height / size ),n = numParts,ctx = canvas.getContext("2d");
	// replace target with canvas$this.after( $canvas );
	canvas.id = this.id;
	canvas.className = this.className;
	canvas.width = width;
	canvas.height = height;
	ctx.drawImage( this,0,0 );
	$this.remove();
	// prepare context for drawing operationsctx.globalCompositeOperation = "destination-out";
	ctx.strokeStyle = 'rgba(255,0,0,255)';
	ctx.lineWidth = size;
	ctx.lineCap = "round";
	// bind events$canvas.bind('mousedown.eraser',methods.mouseDown);
	$canvas.bind('touchstart.eraser',methods.touchStart);
	$canvas.bind('touchmove.eraser',methods.touchMove);
	$canvas.bind('touchend.eraser',methods.touchEnd);
	// reset partswhile( n-- ) parts.push(1);
	// store valuesdata ={
	posX:pos.left,posY:pos.top,touchDown:false,touchID:-999,touchX:0,touchY:0,ptouchX:0,ptouchY:0,canvas:$canvas,ctx:ctx,w:width,h:height,source:this,size:size,parts:parts,colParts:colParts,numParts:numParts,ratio:0,complete:false,completeRatio:completeRatio,completeFunction:completeFunction}
;
	$canvas.data('eraser',data);
	// listen for resize event to update offset values$(window).resize( function(){
	var pos = $canvas.offset();
	data.posX = pos.left;
	data.posY = pos.top;
}
);
}
}
);
}
,touchStart:function( event ){
	var $this = $(this),data = $this.data('eraser');
	if ( !data.touchDown ){
	var t = event.originalEvent.changedTouches[0],tx = t.pageX - data.posX,ty = t.pageY - data.posY;
	methods.evaluatePoint( data,tx,ty );
	data.touchDown = true;
	data.touchID = t.identifier;
	data.touchX = tx;
	data.touchY = ty;
	event.preventDefault();
}
}
,touchMove:function( event ){
	var $this = $(this),data = $this.data('eraser');
	if ( data.touchDown ){
	var ta = event.originalEvent.changedTouches,n = ta.length;
	while( n-- )if ( ta[n].identifier == data.touchID ){
	var tx = ta[n].pageX - data.posX,ty = ta[n].pageY - data.posY;
	methods.evaluatePoint( data,tx,ty );
	data.ctx.beginPath();
	data.ctx.moveTo( data.touchX,data.touchY );
	data.touchX = tx;
	data.touchY = ty;
	data.ctx.lineTo( data.touchX,data.touchY );
	data.ctx.stroke();
	event.preventDefault();
	break;
}
}
}
,touchEnd:function( event ){
	var $this = $(this),data = $this.data('eraser');
	if ( data.touchDown ){
	var ta = event.originalEvent.changedTouches,n = ta.length;
	while( n-- )if ( ta[n].identifier == data.touchID ){
	data.touchDown = false;
	event.preventDefault();
	break;
}
}
}
,evaluatePoint:function( data,tx,ty ){
	var p = Math.floor(tx/data.size) + Math.floor( ty / data.size ) * data.colParts;
	if ( p >= 0 && p < data.numParts ){
	data.ratio += data.parts[p];
	data.parts[p] = 0;
	if ( !data.complete){
	if ( data.ratio/data.numParts >= data.completeRatio ){
	data.complete = true;
	if ( data.completeFunction != null ) data.completeFunction();
}
}
}
}
,mouseDown:function( event ){
	var $this = $(this),data = $this.data('eraser'),tx = event.pageX - data.posX,ty = event.pageY - data.posY;
	methods.evaluatePoint( data,tx,ty );
	data.touchDown = true;
	data.touchX = tx;
	data.touchY = ty;
	data.ctx.beginPath();
	data.ctx.moveTo( data.touchX-1,data.touchY );
	data.ctx.lineTo( data.touchX,data.touchY );
	data.ctx.stroke();
	$this.bind('mousemove.eraser',methods.mouseMove);
	$(document).bind('mouseup.eraser',data,methods.mouseUp);
	event.preventDefault();
}
,mouseMove:function( event ){
	var $this = $(this),data = $this.data('eraser'),tx = event.pageX - data.posX,ty = event.pageY - data.posY;
	methods.evaluatePoint( data,tx,ty );
	data.ctx.beginPath();
	data.ctx.moveTo( data.touchX,data.touchY );
	data.touchX = tx;
	data.touchY = ty;
	data.ctx.lineTo( data.touchX,data.touchY );
	data.ctx.stroke();
	event.preventDefault();
}
,mouseUp:function( event ){
	var data = event.data,$this = data.canvas;
	data.touchDown = false;
	$this.unbind('mousemove.eraser');
	$(document).unbind('mouseup.eraser');
	event.preventDefault();
}
,clear:function(){
	var $this = $(this),data = $this.data('eraser');
	if ( data ){
	data.ctx.clearRect( 0,0,data.w,data.h );
	var n = data.numParts;
	while( n-- ) data.parts[n] = 0;
	data.ratio = data.numParts;
	data.complete = true;
	if ( data.completeFunction != null ) data.completeFunction();
}
}
,size:function(value){
	var $this = $(this),data = $this.data('eraser');
	if ( data && value ){
	data.size = value;
	data.ctx.lineWidth = value;
}
}
,reset:function(){
	var $this = $(this),data = $this.data('eraser');
	if ( data ){
	data.ctx.globalCompositeOperation = "source-over";
	data.ctx.drawImage( data.source,0,0 );
	data.ctx.globalCompositeOperation = "destination-out";
	var n = data.numParts;
	while( n-- ) data.parts[n] = 1;
	data.ratio = 0;
	data.complete = false;
}
}
}
;
	$.fn.eraser = function( method ){
	if ( methods[method] ){
	return methods[method].apply( this,Array.prototype.slice.call( arguments,1 ));
}
else if ( typeof method === 'object' || ! method ){
	return methods.init.apply( this,arguments );
}
else{
	$.error( 'Method ' + method + ' does not yet exist on jQuery.eraser' );
}
}
;
}
)( jQuery );

附件:下载该文件资源,减少时间成本(增值服务)
