SVG实现镂空动画图标特效代码

版权：原创更新时间：1年以上

[该文章底部包含文件资源,可根据自己情况,决定是否下载资源使用,时间>金钱,如有需要,立即查看资源]

以下是 SVG实现镂空动画图标特效代码的示例演示效果:

当前平台(PC电脑)

平台:

整屏预览

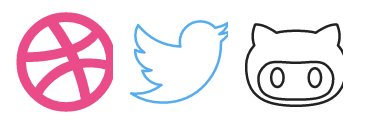

部分效果截图:

HTML代码(index.html):

<!DOCTYPE html>
<html>
<head>
  <meta charset="UTF-8">
  <title>SVG实现镂空动画图标</title>
    <style>
* {
  text-align: center;
}
svg {
  fill: transparent;
  stroke: #222;
  stroke-width: 0.8;
  stroke-linecap: round;
  stroke-linejoin: round;
  stroke-dasharray: 1000;
  stroke-dashoffset: 0;
  animation: dash 18s ease;
  width: 100px;
  height: 100px;
  padding: 5px;
  transition: .3s;
}
svg:hover {
  fill: #222;
}
.icon-dribbble {
  stroke: #ea4c89;
}
.icon-dribbble:hover {
  fill: #ea4c89;
}
.icon-twitter {
  stroke: #55acee;
}
.icon-twitter:hover {
  fill: #55acee;
}
@keyframes dash {
  from {
    stroke-dashoffset: 1000;
  }
  to {
    stroke-dashoffset: 0;
  }
}

</style>

    <script src="js/prefixfree.min.js"></script>

</head>

<body>

<svg display="none" version="1.1" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" width="276" height="32" viewBox="0 0 276 32">
<defs>
<g id="icon-twitter">
	<path d="M33,6.076c-1.177,0.522-2.443,0.875-3.771,1.034c1.355-0.813,2.396-2.099,2.887-3.632
		c-1.269,0.752-2.674,1.299-4.169,1.593c-1.198-1.276-2.904-2.073-4.792-2.073c-3.626,0-6.565,2.939-6.565,6.565
		c0,0.515,0.058,1.016,0.17,1.496c-5.456-0.274-10.294-2.888-13.532-6.86C2.663,5.169,2.339,6.296,2.339,7.5
		c0,2.278,1.159,4.287,2.921,5.465c-1.076-0.034-2.088-0.329-2.974-0.821c-0.001,0.027-0.001,0.055-0.001,0.083
		c0,3.181,2.263,5.833,5.266,6.437c-0.551,0.15-1.131,0.23-1.73,0.23c-0.423,0-0.834-0.041-1.235-0.119
		c0.835,2.608,3.26,4.507,6.133,4.56c-2.247,1.761-5.078,2.81-8.154,2.81c-0.53,0-1.052-0.03-1.566-0.092
		c2.905,1.863,6.356,2.95,10.064,2.95c12.076,0,18.679-10.004,18.679-18.68c0-0.285-0.006-0.568-0.019-0.849
		C31.006,8.548,32.119,7.392,33,6.076L33,6.076z"/>
</g>
<g id="icon-dribbble">
	<path d="M17,31.5C8.454,31.5,1.5,24.547,1.5,16C1.5,7.454,8.454,0.5,17,0.5c8.547,0,15.5,6.954,15.5,15.5
		C32.5,24.547,25.547,31.5,17,31.5z M30.072,18.121c-0.454-0.143-4.098-1.229-8.247-0.565c1.732,4.758,2.437,8.635,2.572,9.439
		C27.368,24.987,29.482,21.806,30.072,18.121z M22.171,28.208c-0.197-1.162-0.966-5.211-2.825-10.042
		c-0.029,0.011-0.058,0.021-0.087,0.03c-7.467,2.603-10.149,7.78-10.386,8.267c2.245,1.751,5.065,2.795,8.127,2.795
		c1.834,0,3.581-0.375,5.171-1.052V28.208z M7.165,24.873c0.3-0.514,3.933-6.529,10.762-8.737c0.172-0.056,0.347-0.109,0.522-0.157
		c-0.333-0.751-0.695-1.505-1.073-2.246c-6.612,1.979-13.028,1.896-13.607,1.884c-0.004,0.135-0.006,0.27-0.006,0.405
		C3.761,19.422,5.05,22.525,7.165,24.873L7.165,24.873z M4.04,13.309c0.592,0.007,6.047,0.032,12.239-1.613
		c-2.193-3.899-4.56-7.178-4.909-7.657C7.667,5.786,4.898,9.2,4.04,13.309z M13.897,3.148c0.366,0.491,2.771,3.765,4.94,7.75
		c4.708-1.764,6.701-4.443,6.939-4.783C23.438,4.042,20.364,2.779,17,2.779C15.932,2.779,14.893,2.907,13.897,3.148L13.897,3.148z
		 M27.249,7.647c-0.279,0.378-2.498,3.222-7.393,5.221c0.308,0.63,0.603,1.272,0.878,1.917c0.098,0.229,0.193,0.456,0.285,0.683
		c4.405-0.554,8.783,0.334,9.219,0.426C30.208,12.769,29.092,9.9,27.249,7.647z"/>
</g>
<g id="icon-github">
	<path d="M1,17.389c0,1.449,0.136,2.762,0.407,3.935c0.271,1.174,0.647,2.192,1.127,3.059s1.09,1.627,1.831,2.285
		c0.741,0.657,1.544,1.194,2.41,1.612c0.866,0.416,1.854,0.756,2.965,1.017c1.111,0.261,2.245,0.443,3.403,0.548
		C14.301,29.948,15.574,30,16.961,30c1.398,0,2.676-0.052,3.834-0.156c1.158-0.104,2.295-0.287,3.411-0.548
		c1.116-0.261,2.11-0.601,2.981-1.017c0.871-0.418,1.68-0.954,2.425-1.612c0.746-0.657,1.361-1.419,1.846-2.285
		s0.863-1.886,1.134-3.059c0.271-1.175,0.407-2.486,0.407-3.935c0-2.588-0.866-4.826-2.597-6.714c0.094-0.25,0.18-0.535,0.258-0.853
		c0.078-0.318,0.151-0.772,0.219-1.361s0.042-1.27-0.078-2.042c-0.12-0.772-0.342-1.56-0.665-2.363l-0.235-0.047
		c-0.167-0.031-0.441-0.023-0.822,0.024c-0.381,0.047-0.824,0.141-1.33,0.282s-1.158,0.412-1.956,0.814
		c-0.798,0.402-1.64,0.905-2.527,1.51c-1.523-0.417-3.615-0.626-6.275-0.626c-2.65,0-4.736,0.209-6.259,0.626
		c-0.887-0.605-1.734-1.108-2.543-1.51C7.381,4.727,6.736,4.456,6.256,4.315S5.328,4.083,4.91,4.041
		C4.493,3.999,4.229,3.986,4.12,4.002C4.01,4.018,3.924,4.036,3.862,4.057C3.539,4.86,3.317,5.648,3.197,6.42
		c-0.12,0.772-0.146,1.453-0.078,2.042C3.187,9.051,3.26,9.505,3.338,9.823c0.078,0.318,0.164,0.602,0.258,0.853
		c-1.732,1.888-2.598,4.126-2.598,6.713H1z M4.928,21.314c0-1.502,0.683-2.879,2.05-4.131c0.407-0.375,0.881-0.66,1.424-0.853
		c0.542-0.193,1.155-0.302,1.839-0.329c0.683-0.026,1.338-0.021,1.964,0.016s1.398,0.086,2.316,0.149s1.711,0.094,2.379,0.094
		s1.46-0.031,2.378-0.094s1.69-0.112,2.316-0.149c0.626-0.037,1.28-0.042,1.964-0.016c0.683,0.026,1.296,0.136,1.839,0.329
		c0.542,0.192,1.017,0.478,1.424,0.853c1.367,1.231,2.05,2.608,2.05,4.131c0,0.897-0.112,1.693-0.337,2.387
		c-0.224,0.693-0.511,1.275-0.861,1.744c-0.349,0.47-0.834,0.869-1.455,1.197c-0.621,0.33-1.226,0.582-1.815,0.76
		c-0.589,0.177-1.346,0.315-2.269,0.414c-0.923,0.1-1.747,0.16-2.472,0.181s-1.646,0.03-2.762,0.03c-1.116,0-2.037-0.01-2.762-0.03
		c-0.725-0.021-1.549-0.081-2.472-0.181c-0.923-0.099-1.68-0.236-2.269-0.414s-1.194-0.43-1.815-0.76
		c-0.621-0.328-1.106-0.728-1.455-1.197c-0.349-0.469-0.636-1.051-0.861-1.744c-0.224-0.694-0.336-1.489-0.336-2.387H4.928z M21,21
		c0-1.657,0.895-3,2-3s2,1.343,2,3s-0.895,3-2,3S21,22.657,21,21z M9,21c0-1.657,0.895-3,2-3s2,1.343,2,3s-0.895,3-2,3
		S9,22.657,9,21z"/>
</g>

</defs>
</svg>
<article class="article">
	<svg class="icon-dribbble" viewBox="0 0 32 32"><use xlink:href="#icon-dribbble"></use></svg>
	<svg class="icon-twitter" viewBox="0 0 32 32"><use xlink:href="#icon-twitter"></use></svg>
	<svg class="icon-github" viewBox="0 0 32 32"><use xlink:href="#icon-github"></use></svg>
</article>
</body>
</html>

JS代码(prefixfree.min.js):

/** * StyleFix 1.0.3 & PrefixFree 1.0.7 * @author Lea Verou * MIT license */
(function(){
	function t(e,t){
	return[].slice.call((t||document).querySelectorAll(e))}
if(!window.addEventListener)return;
	var e=window.StyleFix={
	link:function(t){
	try{
	if(t.rel!=="stylesheet"||t.hasAttribute("data-noprefix"))return}
catch(n){
	return}
var r=t.href||t.getAttribute("data-href"),i=r.replace(/[^\/]+$/,""),s=(/^[a-z]{
	3,10}
:/.exec(i)||[""])[0],o=(/^[a-z]{
	3,10}
:\/\/[^\/]+/.exec(i)||[""])[0],u=/^([^?]*)\??/.exec(r)[1],a=t.parentNode,f=new XMLHttpRequest,l;
	f.onreadystatechange=function(){
	f.readyState===4&&l()}
,l=function(){
	var n=f.responseText;
	if(n&&t.parentNode&&(!f.status||f.status<400||f.status>600)){
	n=e.fix(n,!0,t);
	if(i){
	n=n.replace(/url\(\s*?((?:"|')?)(.+?)\1\s*?\)/gi,function(e,t,n){
	return/^([a-z]{
	3,10}
:|#)/i.test(n)?e:/^\/\//.test(n)?'url("'+s+n+'")':/^\//.test(n)?'url("'+o+n+'")':/^\?/.test(n)?'url("'+u+n+'")':'url("'+i+n+'")'}
);
	var r=i.replace(/([\\\^\$*+[\]?{
}
.=!:(|)])/g,"\\$1");
	n=n.replace(RegExp("\\b(behavior:\\s*?url\\('?\"?)"+r,"gi"),"$1")}
var l=document.createElement("style");
	l.textContent=n,l.media=t.media,l.disabled=t.disabled,l.setAttribute("data-href",t.getAttribute("href")),a.insertBefore(l,t),a.removeChild(t),l.media=t.media}
}
;
	try{
	f.open("GET",r),f.send(null)}
catch(n){
	typeof XDomainRequest!="undefined"&&(f=new XDomainRequest,f.onerror=f.onprogress=function(){
}
,f.onload=l,f.open("GET",r),f.send(null))}
t.setAttribute("data-inprogress","")}
,styleElement:function(t){
	if(t.hasAttribute("data-noprefix"))return;
	var n=t.disabled;
	t.textContent=e.fix(t.textContent,!0,t),t.disabled=n}
,styleAttribute:function(t){
	var n=t.getAttribute("style");
	n=e.fix(n,!1,t),t.setAttribute("style",n)}
,process:function(){
	t("style").forEach(StyleFix.styleElement),t("[style]").forEach(StyleFix.styleAttribute)}
,register:function(t,n){
	(e.fixers=e.fixers||[]).splice(n===undefined?e.fixers.length:n,0,t)}
,fix:function(t,n,r){
	for(var i=0;
	i<e.fixers.length;
	i++)t=e.fixers[i](t,n,r)||t;
	return t}
,camelCase:function(e){
	return e.replace(/-([a-z])/g,function(e,t){
	return t.toUpperCase()}
).replace("-","")}
,deCamelCase:function(e){
	return e.replace(/[A-Z]/g,function(e){
	return"-"+e.toLowerCase()}
)}
}
;
	(function(){
	setTimeout(function(){
}
,10),document.addEventListener("DOMContentLoaded",StyleFix.process,!1)}
)()}
)(),function(e){
	function t(e,t,r,i,s){
	e=n[e];
	if(e.length){
	var o=RegExp(t+"("+e.join("|")+")"+r,"gi");
	s=s.replace(o,i)}
return s}
if(!window.StyleFix||!window.getComputedStyle)return;
	var n=window.PrefixFree={
	prefixCSS:function(e,r,i){
	var s=n.prefix;
	n.functions.indexOf("linear-gradient")>-1&&(e=e.replace(/(\s|:|,)(repeating-)?linear-gradient\(\s*(-?\d*\.?\d*)deg/ig,function(e,t,n,r){
	return t+(n||"")+"linear-gradient("+(90-r)+"deg"}
)),e=t("functions","(\\s|:|,)","\\s*\\(","$1"+s+"$2(",e),e=t("keywords","(\\s|:)","(\\s|;
	|\\}
|$)","$1"+s+"$2$3",e),e=t("properties","(^|\\{
	|\\s|;
	)","\\s*:","$1"+s+"$2:",e);
	if(n.properties.length){
	var o=RegExp("\\b("+n.properties.join("|")+")(?!:)","gi");
	e=t("valueProperties","\\b",":(.+?);
	",function(e){
	return e.replace(o,s+"$1")}
,e)}
return r&&(e=t("selectors","","\\b",n.prefixSelector,e),e=t("atrules","@","\\b","@"+s+"$1",e)),e=e.replace(RegExp("-"+s,"g"),"-"),e=e.replace(/-\*-(?=[a-z]+)/gi,n.prefix),e}
,property:function(e){
	return(n.properties.indexOf(e)?n.prefix:"")+e}
,value:function(e,r){
	return e=t("functions","(^|\\s|,)","\\s*\\(","$1"+n.prefix+"$2(",e),e=t("keywords","(^|\\s)","(\\s|$)","$1"+n.prefix+"$2$3",e),e}
,prefixSelector:function(e){
	return e.replace(/^:{
	1,2}
/,function(e){
	return e+n.prefix}
)}
,prefixProperty:function(e,t){
	var r=n.prefix+e;
	return t?StyleFix.camelCase(r):r}
}
;
	(function(){
	var e={
}
,t=[],r={
}
,i=getComputedStyle(document.documentElement,null),s=document.createElement("div").style,o=function(n){
	if(n.charAt(0)==="-"){
	t.push(n);
	var r=n.split("-"),i=r[1];
	e[i]=++e[i]||1;
	while(r.length>3){
	r.pop();
	var s=r.join("-");
	u(s)&&t.indexOf(s)===-1&&t.push(s)}
}
}
,u=function(e){
	return StyleFix.camelCase(e)in s}
;
	if(i.length>0)for(var a=0;
	a<i.length;
	a++)o(i[a]);
	else for(var f in i)o(StyleFix.deCamelCase(f));
	var l={
	uses:0}
;
	for(var c in e){
	var h=e[c];
	l.uses<h&&(l={
	prefix:c,uses:h}
)}
n.prefix="-"+l.prefix+"-",n.Prefix=StyleFix.camelCase(n.prefix),n.properties=[];
	for(var a=0;
	a<t.length;
	a++){
	var f=t[a];
	if(f.indexOf(n.prefix)===0){
	var p=f.slice(n.prefix.length);
	u(p)||n.properties.push(p)}
}
n.Prefix=="Ms"&&!("transform"in s)&&!("MsTransform"in s)&&"msTransform"in s&&n.properties.push("transform","transform-origin"),n.properties.sort()}
)(),function(){
	function i(e,t){
	return r[t]="",r[t]=e,!!r[t]}
var e={
	"linear-gradient":{
	property:"backgroundImage",params:"red,teal"}
,calc:{
	property:"width",params:"1px + 5%"}
,element:{
	property:"backgroundImage",params:"#foo"}
,"cross-fade":{
	property:"backgroundImage",params:"url(a.png),url(b.png),50%"}
}
;
	e["repeating-linear-gradient"]=e["repeating-radial-gradient"]=e["radial-gradient"]=e["linear-gradient"];
	var t={
	initial:"color","zoom-in":"cursor","zoom-out":"cursor",box:"display",flexbox:"display","inline-flexbox":"display",flex:"display","inline-flex":"display",grid:"display","inline-grid":"display","min-content":"width"}
;
	n.functions=[],n.keywords=[];
	var r=document.createElement("div").style;
	for(var s in e){
	var o=e[s],u=o.property,a=s+"("+o.params+")";
	!i(a,u)&&i(n.prefix+a,u)&&n.functions.push(s)}
for(var f in t){
	var u=t[f];
	!i(f,u)&&i(n.prefix+f,u)&&n.keywords.push(f)}
}
(),function(){
	function s(e){
	return i.textContent=e+"{
}
",!!i.sheet.cssRules.length}
var t={
	":read-only":null,":read-write":null,":any-link":null,"::selection":null}
,r={
	keyframes:"name",viewport:null,document:'regexp(".")'}
;
	n.selectors=[],n.atrules=[];
	var i=e.appendChild(document.createElement("style"));
	for(var o in t){
	var u=o+(t[o]?"("+t[o]+")":"");
	!s(u)&&s(n.prefixSelector(u))&&n.selectors.push(o)}
for(var a in r){
	var u=a+" "+(r[a]||"");
	!s("@"+u)&&s("@"+n.prefix+u)&&n.atrules.push(a)}
e.removeChild(i)}
(),n.valueProperties=["transition","transition-property"],e.className+=" "+n.prefix,StyleFix.register(n.prefixCSS)}
(document.documentElement);

CSS代码(style.css):

*{text-align:center;}
svg{fill:transparent;stroke:#222;stroke-width:0.8;stroke-linecap:round;stroke-linejoin:round;stroke-dasharray:1000;stroke-dashoffset:0;animation:dash 18s ease;width:100px;height:100px;padding:5px;transition:.3s;}
svg:hover{fill:#222;}
.icon-dribbble{stroke:#ea4c89;}
.icon-dribbble:hover{fill:#ea4c89;}
.icon-twitter{stroke:#55acee;}
.icon-twitter:hover{fill:#55acee;}
@keyframes dash{from{stroke-dashoffset:1000;}
to{stroke-dashoffset:0;}
}
