以下是 Canvas半圆形进度条动画特效js代码 的示例演示效果:

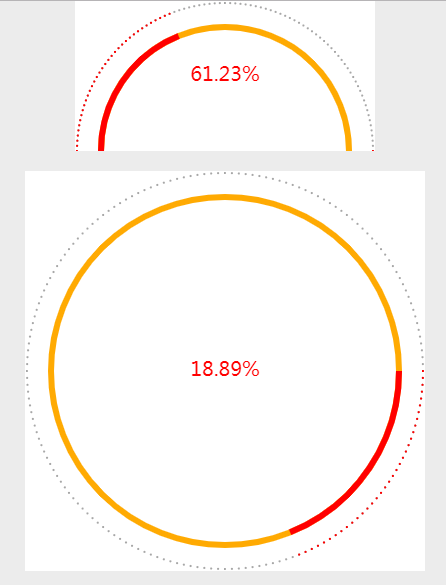

部分效果截图:
HTML代码(index.html):
<!doctype html>
<html>
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width,minimum-scale=1.0,maximum-scale=1.0,user-scalable=no">
<meta name="wap-font-scale" content="no">
<title>Canvas半圆形进度条动画特效</title>
<link rel="stylesheet" type="text/css" href="style/style.css">
<script type="text/javascript" src="js/jquery-1.11.2.min.js"></script>
<script type="text/javascript" src="js/hidpi-canvas.min.js"></script>
<script type="text/javascript" src="js/modernizr-2.6.2.min.js"></script>
<script type="text/javascript" src="js/cycle.js"></script>
</head>
<body>
<div class="loadingParent">
<canvas id="canvasIndex" width="450" height="225" amount="10000" vote="10000" tip="50">您的浏览器不支持canvas标签，建议使用chrome,firefox,ie10+</canvas>
<canvas id="canvasIndex1" width="450" height="225" amount="10000" vote="10000" tip="50">您的浏览器不支持canvas标签，建议使用chrome,firefox,ie10+</canvas>
<canvas id="canvasIndex2" width="450" height="225" amount="10000" vote="10000" tip="50">您的浏览器不支持canvas标签，建议使用chrome,firefox,ie10+</canvas>
</div>
<script>
//圆环进度条
$(function(){
var w=$(".loadingParent").width();
var option={
percent:80 ,
w:300
}
$("#canvasIndex").audios2(option);
var option2={
percent:23, //百分比数值
w:400, //宽度
oneCircle:"ture" //是否是整个圆 默认半圆
}
$("#canvasIndex1").audios2(option2);
// 默认参数 百分比100 宽度500 半圆环
$("#canvasIndex2").audios2();
})
</script>
</body>
</html>JS代码(cycle.js):
// JavaScript Document//created by zcy 20161011;
(function($,window,document,undefined){
//默认参数var this.PARAMS;
var plugin=function(ele,opt){
this.parent=ele;
this.defaults={
percent:100,w:500,oneCircle:"false"}
;
//初始化参数this.PARAMS=$.extend({
}
,this.defaults,opt);
this.DrawCircle();
}
//定义方法plugin.prototype={
DrawCircle:function(){
if(!canvasSupport()){
return}
var drawOne=this.PARAMS.oneCircle;
var r=this.PARAMS.w/2;
var r1=this.PARAMS.w/2-20;
var x1=this.PARAMS.w/2;
var y1=this.PARAMS.w/2;
var canvas=this.parent[0];
var tip=this.PARAMS.percent;
var angle="";
var init=0;
var initA=0;
var preM=0;
var initM=0;
//因为是半圆 所以初始角度是Math.PI;
var s=2*Math.PI/180;
var bottomC=Math.PI;
var allCount=180;
var allCountP=1.8;
var poinits=new Array();
if(drawOne=="ture"){
angle=tip*2*Math.PI/100;
canvas.width=this.PARAMS.w;
canvas.height=this.PARAMS.w;
bottomC=2*Math.PI;
allCount=0;
allCountP=3.6;
}
else{
angle=tip*Math.PI/100+Math.PI;
canvas.width=this.PARAMS.w;
canvas.height=this.PARAMS.w/2;
init=180;
preM=Math.PI;
initM=Math.PI;
//因为是半圆 所以初始角度是Math.PI;
s=2*Math.PI/180;
}
var cxt=canvas.getContext("2d");
//cxt.lineCap="round";
cxt.lineWidth=6;
var speed=1;
var radius=this.PARAMS.w/2-2;
var ball={
x:0,y:0,speed:2}
;
var T1;
function drawScreen(){
cxt.fillStyle="#ffffff";
cxt.fillRect(0,0,canvas.width,canvas.height);
//创建圆环与虚线//底圆cxt.beginPath();
cxt.strokeStyle="#ffaa02";
cxt.arc(x1,y1,r1-6,0,bottomC,true);
cxt.stroke();
//先执行stroke 就不会出现横线cxt.closePath();
//虚线var balls=[];
var balls=new Array();
for(var i=initA;
i<=360;
i+=ball.speed){
var radians=(i)*(Math.PI/180);
ball.x=x1+Math.cos(radians)*radius;
ball.y=y1+Math.sin(radians)*radius;
balls.push({
x:ball.x,y:ball.y}
);
}
for(var i=0;
i<balls.length;
i++){
cxt.fillStyle="#a7a7a7";
cxt.beginPath();
cxt.arc(balls[i].x,balls[i].y,1,0,Math.PI*2,false);
//console.log(balls[i].x)cxt.closePath();
cxt.fill();
}
//画实线if(initM<angle){
initM+=s;
}
else{
initM=angle;
}
cxt.beginPath();
cxt.strokeStyle="#ff0000";
cxt.arc(x1,y1,r1-6,0,initM,false);
cxt.stroke();
//先执行stroke 就不会出现横线cxt.closePath();
//画虚线if(init<tip*allCountP+allCount){
//小于初始角度init+=ball.speed}
else{
clearInterval(T1);
}
for(var i=initA;
i<=init;
i+=2){
var radians2=i*(Math.PI/180);
var a1=x1+Math.cos(radians2)*radius;
var a2=y1+Math.sin(radians2)*radius;
cxt.fillStyle="#ff0000";
cxt.beginPath();
cxt.arc(a1,a2,1,0,Math.PI*2,false);
//console.log(balls[i].x)cxt.closePath();
cxt.fill();
}
//百分比文字cxt.font="20px sans bold";
cxt.textBaseline="middle";
cxt.textAlign="center";
cxt.fillStyle="#ff0000";
var messT=tip*initM/angle;
/*if(drawOne!="ture"){
messT=tip*(initM)/angle;
console.log(initM-Math.PI)}
*/
if(messT>tip){
messT=tip}
var mess=messT.toFixed(2)+"%";
cxt.fillText(mess,canvas.width/2,canvas.height/2);
}
// T1=setInterval(drawScreen,30)}
}
function canvasSupport(){
//判断是否支持canvas标签 return Modernizr.canvas;
}
//在插件中使用plugin对象 $.fn.audios2=function(options){
//创建实体var plugina=new plugin(this,options);
}
}
)(jQuery,window,document);
CSS代码(style.css):
@charset "utf-8";/* CSS Document */
*{margin:0;padding:0;}
*:focus{outline:none;}
body{margin:0;padding:0;font-family:"微软雅黑";color:#151515;background:#ececec;font-size:12px;}
body{max-width:750px;margin:0 auto;}
.whitebg{background:#ffffff;}
img{border:none;}
ul,li{list-style:none;}
a{text-decoration:none;color:#4a4a4a;}
a{-webkit-tap-highlight-color:rgba(0,0,0,0);}
a img{-webkit-tap-highlight-color:rgba(0,0,0,0);}
*{text-decoration:none;color:#4a4a4a;}
*{-webkit-tap-highlight-color:rgba(0,0,0,0);}
* img{-webkit-tap-highlight-color:rgba(0,0,0,0);}
::selection{background-color:#ffffff;color:#4a4a4a;}
body{width:100%;height:100%;}
.clear{clear:both;height:0;overflow:hidden;}
.fl{float:left;}
.fr{float:right;}
i{font-style:normal;}
input{outline:0;}
.loadingParent{width:800px;margin:0 auto;}
.loadingParent canvas{display:block;margin:0 auto;margin-bottom:20px;}
